electric steel frame 120 TPD Maize Flour Milling Machine

Brand Name : CTGRAIN

Model Number : CTWM

Certification : CE

Place of Origin : Henan Zhengzhou

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3 Sets per Month

Delivery Time : 90 working days

Packaging Details : Nude packing in Full Container Loading or Fumigation wooden case for LCL.

Name : 120 TPD maize flour milling machine Compact flour mill

Raw material : Wheat Maize Corn Rice

Application : food, foodstuffs, chemical industry, and other industries

Type : Grain Processing Equipment

Capacity : 40-150tpd

Final Products : Flour

Roller Mill Model : manual

Sifter Model : plansifter

Total Power(kw) : 450

Contact Now

120 TPD maize flour milling machine Compact flour mill

Compact flour mill Introduction:

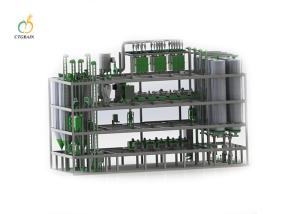

The compact flour mill adopts a steel frame structure for installation. The general structure has three layers. The flour mill is located at the bottom layer, the screen is installed on the first layer, and the shaken and pneumatic conveying pipeline are installed on the second layer.

The compact flour mill adopts closed pipe ventilation and dust removal system, and the material grinded by the mill is transported by air through the pipeline. The height of the whole three-layer structure is relatively low, so it can be installed in the warehouse compactly to reduce investment cost. The whole flour mill can be equipped with PLC control system, which is convenient to realize the centralized control of automation and the operation will be more convenient. The whole flour mill can be customized and designed based on customers' needs, and the milling process can also be adjusted accordingly.

Compact flour mill features:

1. The whole design of the compact flour mill reduces the amount of wheat bran mixing and improves the yield of flour.

2. The configuration of the cleaning machine can ensure the full grinding of materials.

3. After grinding, the material is transported by the pneumatic pipeline. The closed conveying system reduces dust pollution.

Compact flour mill parameter:

Compact flour mill Model CTWM-120
Capacith(t/24h) 120
Roller Mill Model manual
Sifter Model twin sifter
Cleaning Flow Sheet 3-sifting,2-scrouring,2-destoning,1-dampening
Mill Flow Sheet 5-breaking,8-reducing,1T,1S,4P
Total Power(kw) 450
Space LxWxH(m) 46x10x11
