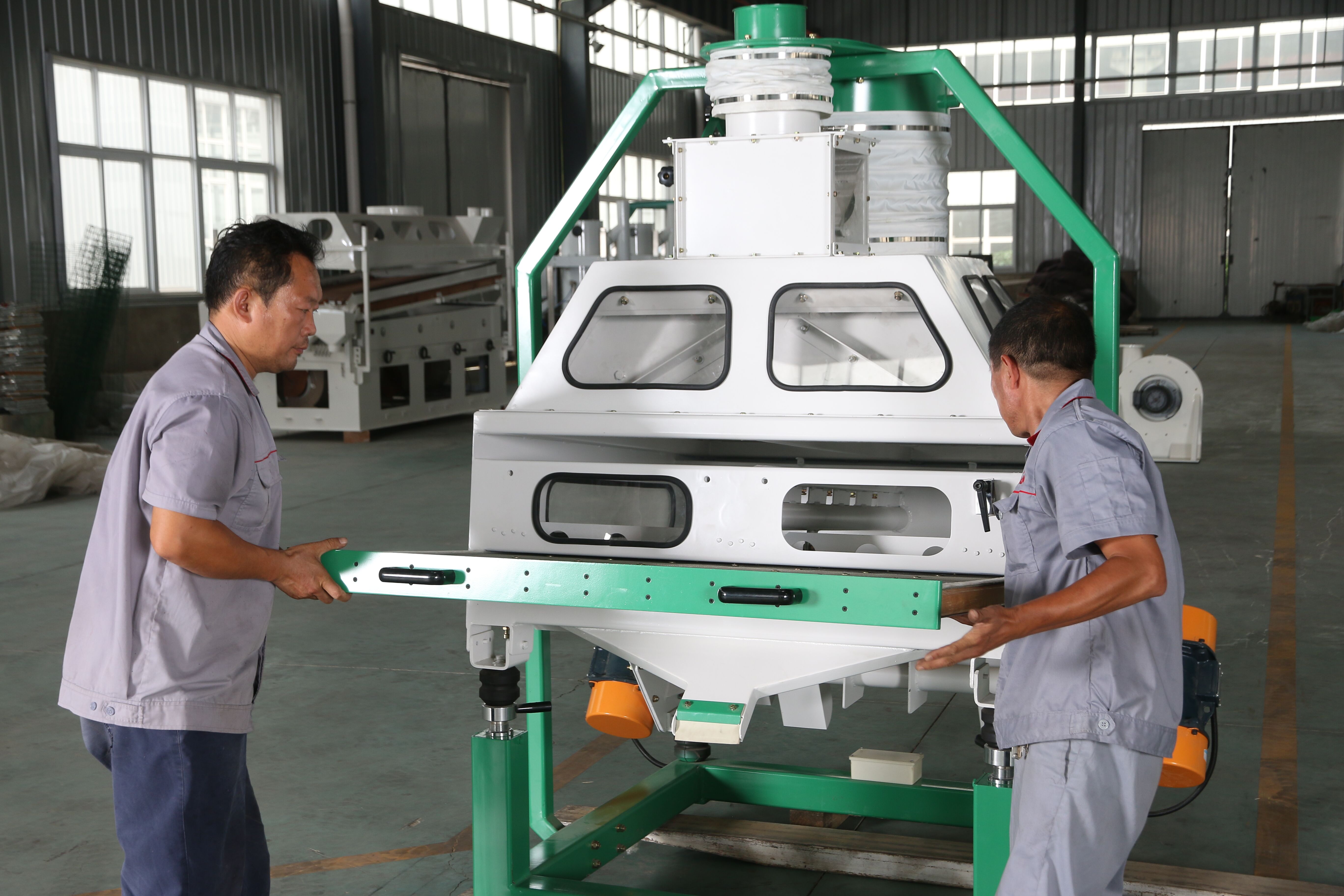

TQSF100 Destoner Stone Removing Machine Used in Wheat Flour Mill Plant
The machine used for clean grain
* To remove stones
* To classify grain like wheat, corn
* To remove light impurities
Detailed Parts:
1. The upper sieve plate
Three section screens with different size holes are used to improve the automatic classification of materials.
2. Bottom sieve plate
It is working surface of removing the stone with high efficiency.
3. Ball cleaner
To keep sieve from blocking by cleaning the sieve effectively.
4. Amplitude and screen angle indicator
The amplitude and screen angle can be adjusted according to the indicator.
5. Wind door adjustment
Air volume can be adjusted according to the material characteristics , so as to achieve good destone effect.
Features :
1) Reliable and excellent classifying and de-stoning.
2) Negative pressure, no dust sprays out.
3) High capacity.
4) Easy operation and maintenance.
Technical Parameter List :
| Type | TQSF100 |
| Power | 2 x 0.25 kW |
| Capacity | 7 - 9 t / h |
| Aspiration Volume | 8000 m3 / h |
| Sieve Width | 100 cm |
| Weight | 400 kg |
| Shape Size | 1500 x 1246 x 1900 mm |
FAQ:
1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service.
3.Q : Do you accept small order?
A : Yes,We accept small order, the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What’s the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
